Net protection wall, 2.00 x 3.00 m
Mesh size
60 mm
Mesh size
60 mm
Safety net system
U (safety net in load-bearing construction for vertical use)

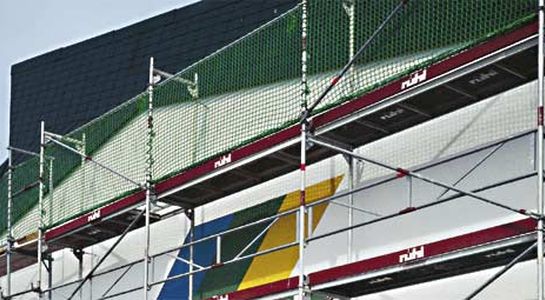

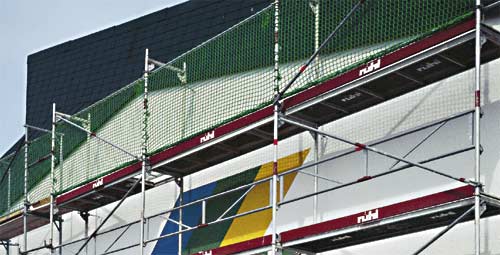

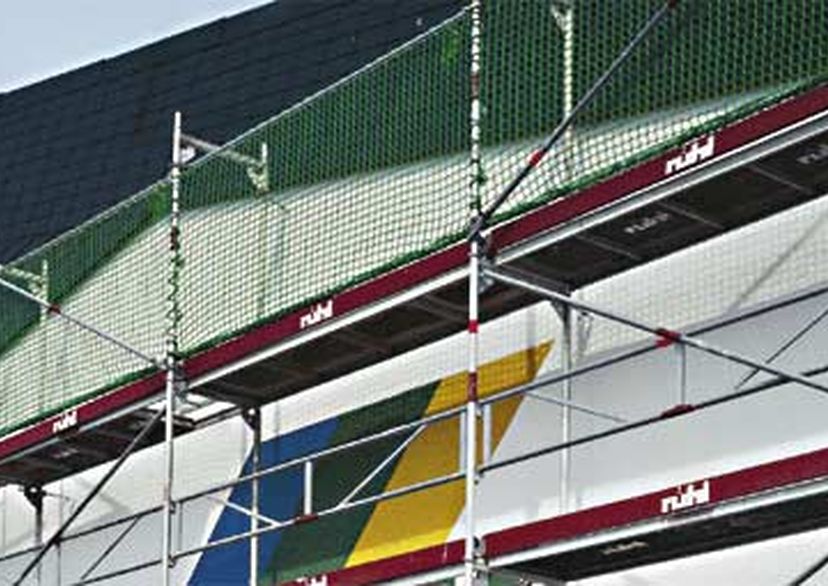

Net protection wall consiting of safety net EN 1263-1, system U, attached to scaffolding tube with additional lacing rope, approx. 8 mm dia. German test certificate GS 03004 (which replaced GS 97173).
Material: Polypropylene high tenacity
Diameter: 5 mm
Meshsize: 60 mm
Properties
Article number
3036-060
Available colours
(01)
(04)
Mesh
square
Size
3 x 2 m
Execution
ready for installation
Execution
ready for installation
Material
high tenacity polypropylene, knotless
Material diameter
5 mm
Material diameter
5 mm
Mesh size
60 mm
Mesh size
60 mm
Mesh breaking strength
3.20 kN
Standards and Rules
DIN EN 1263 - 1
Safety net system
U (safety net in load-bearing construction for vertical use)
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Weather resistance
good
UV-Resistance
300 kly
Tensile strength after two years of climatic influences
90%
Customs tariff number
5608 19 30
